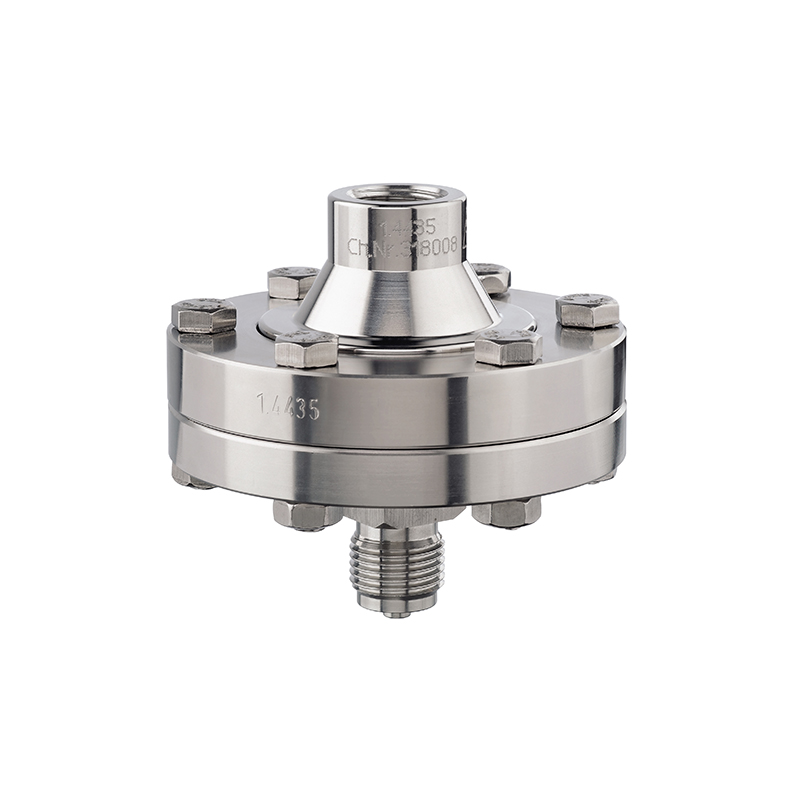

Standard Diaphragm Seal, Bolted Construction. PN 40
Standard Diaphragm Seal, with male thread or flange connection. PN 40 (Optional PN 100)
The bolted construction allows a combination of different materials and different process connections.
Wide range of applications for this design.
Can be mounted direct of remote via armored capillary.
Downloads
Extended Description
Description
Standard Diaphragm Seal for fitting to Pressure Gauges, Pressure Switches or Pressure Transmitters. High quality, robust bolted construction.
Available in different materials and process connections. Male thread or open flange design. Direct or remote via armoured capillary.
Designed for a variety of applications and can be filled with different fill fluids to suit the application.
Please email enquiries to sales@itiuk.com
Features / Benefits
For fitting to Gauges, Switches or Transmitters
High quality product made in UK/EU
Bolted construction
Threaded or flanged process connection
Direct or remote via armoured capillary
Reliable, well-made and robust
Suitable for many applications
Different materials and wetted parts available
Applications
General Industrial
Chemical & Petrochemical
Process Plants
Pharmaceutical
Oil and Gas
Shipping
Power Generation
