High quality Test Pressure Gauge, designed and manufactured to meet the requirements of most test pressure measurement applications where high accuracy is required. Ideal for calibration laboratory or test house.

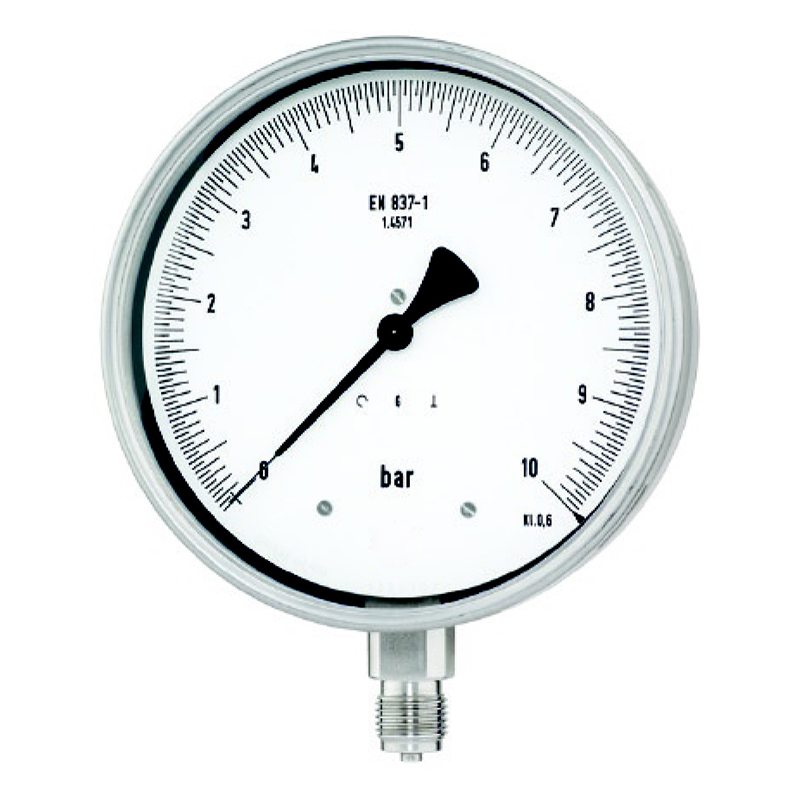

Available in all pressure ranges from 0-0.6 bar to 0-1,600 bar (0-10 psi to 0-20000 psi) including vacuum and compound. The RFCh 250-3 version is widely used throughout the world. It is available in many configurations such as bottom connection (pictured), panel mount, surface mount etc.and in all thread sizes such as BSP, BSPT, NPT. The standard version has the DIN case in 304SS with 316SS wetted parts but other materials are available such as brass.
Call or email us to ask about the many options available for this product.
Features / Benefits
EN837 Class 0.6
High quality product made in UK/EU
All stainless steel construction
DIN type case, bayonet bezel and safety glass
Large diameter dial for clear reading
Other options and configurations available, such class 0.25%, mirror scale etc
Accurate, reliable, well-made and robust
Suitable for most applications
Available with brass/copper alloy wetted parts
Calibration & Test
Chemical & Petrochemical
Food, Beverage & Dairy
Oil and Gas
