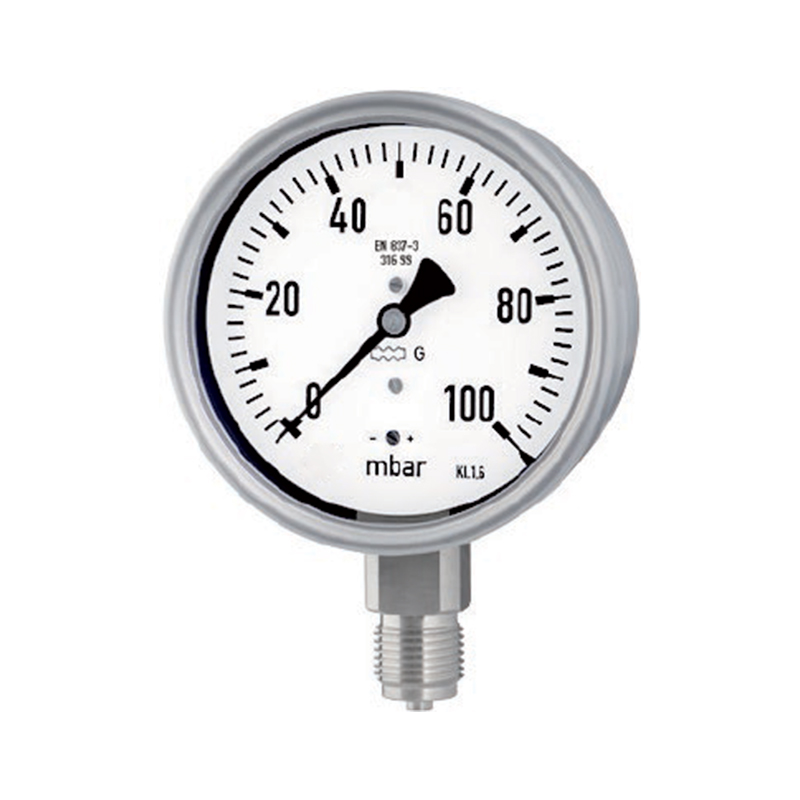

SS Low Pressure Capsule Gauge 100mm (4″)
KPCh 100-3 Dry
KPChG 100-3 Filled
KPCh(G) 100-3 Fillable
High quality, EN837 Class 1.6 DIN Case. Stainless Steel Wetted Parts.
Dry from 0-2.5mbar (0-1.0″WG) to 0-600 mbar (0-250″WG)
Filled from 0-100mbar (0-40″WG) to 0-600 mbar (0-250″WG)
High Quality Low Pressure Capsule Gauges. Manufactured for the measurement of low pressures of gaseous, dry and clean media.
Dry ranges from 0-2.5mbar (0-1.0″WG) to 0-600 mbar (0-250″WG) Glycerine filled from 0-100mbar (0-40″WG) to 0-600 mbar (0-250″WG) The KPCh / KPChG 100-3 version is available in bottom and back connection, with front or back flange mount.
This standard version has the DIN case in 304SS with 316SS wetted parts. Options available in 160mm (6″), 250mm (10″) and brass wetted parts.
Call or email us to ask about the options available for this product.
Features / Benefits
EN837 Class 1.6
High quality product made in UK/EU
DIN type case, bayonet bezel
Available in 160mm, 250mm and with brass wetted parts
Diaphragm capsule for low pressures
Accurate, reliable and well-made
Chemical & Petrochemical
