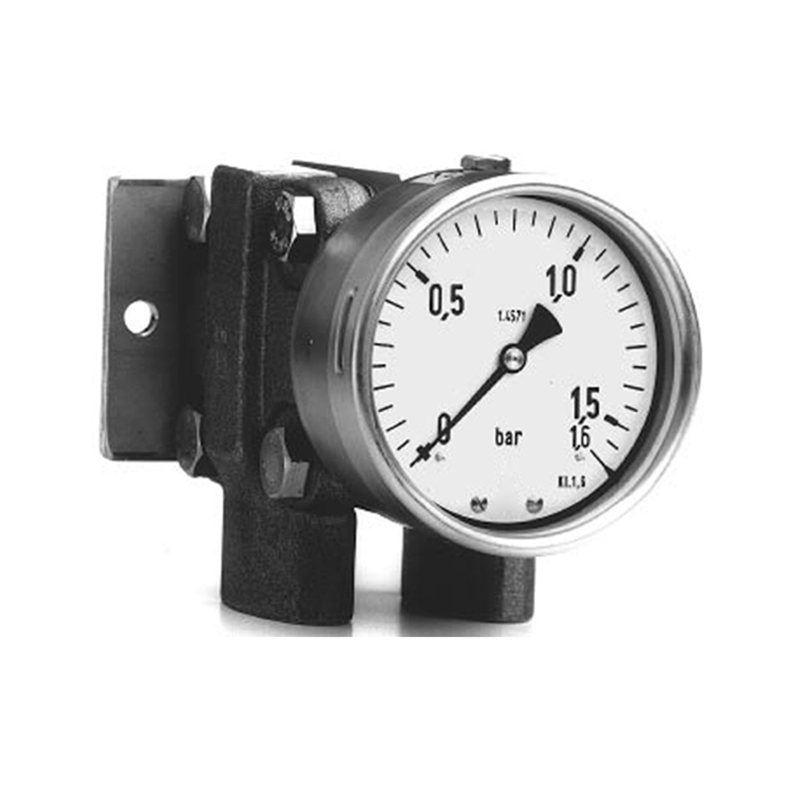

Differential Pressure Gauge (Low Diff, High static)
DiP1Ch 100-3 Dry
DiP1ChG 100-3 Filled
DiP1Ch(G) 100-3 Fillable
High quality, EN837 Class 1.6 DIN Case. 316SS Wetted Parts.
For direct indication of low differential pressure from 0-40 mbar and above at static pressure of 40 bar or optionally 100 bar
Downloads
Extended Description
Description
High quality Differential Pressure Gauges. Manufactured with 2 pressure chambers with diaphragms connected via a push rod.
The push rod transfers the deviation of the measuring diaphragms to the dial face. Available in pressure ranges from 0-0.6 bar to 0-25 bar (0-40 to 0-400 mbar form 160mm version) The DiP1Ch / DiP1ChG 100-3 version is also available in 160mm (6″) see data sheet 5200 for further information.
This standard version has the DIN case and can be fitted with electric contacts and e-Gauge. Call or email us to ask about the options available for this product.
Features / Benefits
EN837 Class 1,6
High quality product made in UK/EU
All stainless steel construction
DIN type case, bayonet bezel and safety glass
Can be supplied dry or glycerine filled
2 Bourdon tubes
Accurate, reliable, well-made and robust
Applications
Filter systems
Chemical & Petrochemical
Heating installations
Oil and Gas
