(4″) 100mm All SS Process Pressure Gauge DIN Case
- 100mm (4 inch) Dial
- Accuracy Class 1.0 (EN837-1)
- BSP or NPT Process Thread
- -1 bar to 1600 Bar Ranges
- All Stainless Steel Construction
- Available From Stock
- 316SS Wetted Parts
- UKAS Traceable Calibration Available.
High quality Process Pressure Gauges, designed and manufactured to meet the requirements of most industrial pressure measurement applications.
Available in all pressure ranges from 0-0.6 bar to 0-1,600 bar (0-10 psi to 0-20000 psi) including vacuum and compound.

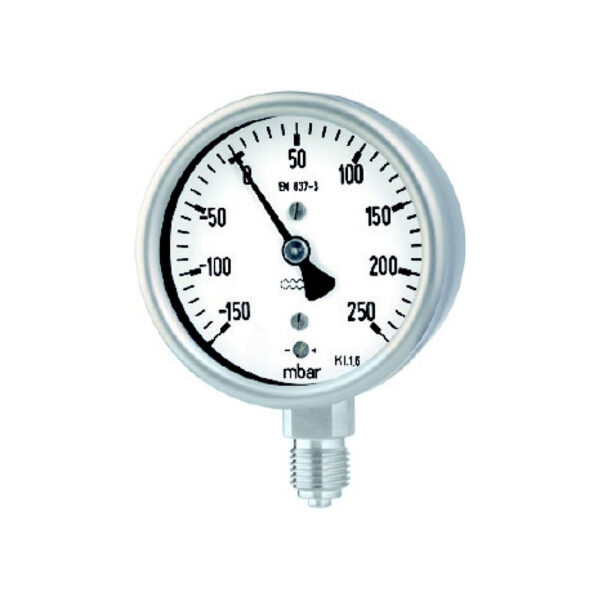

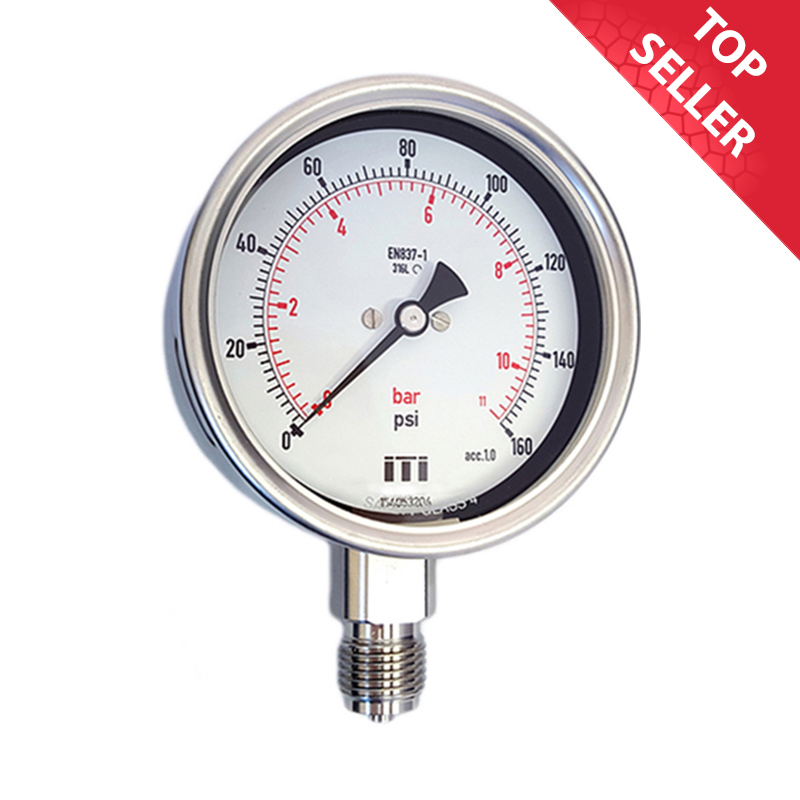

The RCh / RChG 100-3 version is widely used throughout the world. It is available in all configurations such as bottom connection (pictured), panel mount, surface mount etc. and in all thread sizes such as BSP, BSPT, NPT.
The standard version has the DIN case in 304SS with 316SS wetted parts but other materials are available such as brass. These gauges can be fitted with our extensive range of chemical seals, electric contacts and the all new eGauge.
RCh 100-3 Dry
RChG 100-3 Filled
RCh(G) 100-3 Fillable
