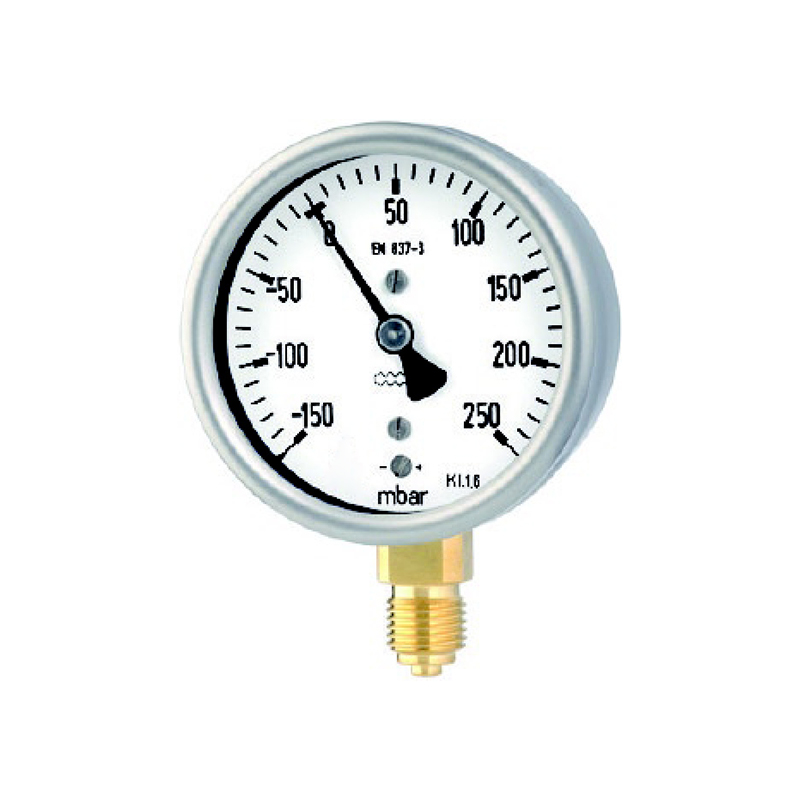

Low Pressure Capsule Gauge 63mm (2.5″)
KPCh 63-1 Dry
KPChG 63-1 Filled
KPCh(G) 63-1 Fillable
High quality, EN837 Class 1.6 DIN Case. Brass Wetted Parts.
Dry from 0-25mbar (0-10″WG) to 0-600 mbar (0-250″WG)
Filled from 0-100mbar (0-40″WG) to 0-600 mbar (0-250″WG)
High Quality Low Pressure Capsule Gauges. Manufactured for the measurement of low pressures of gaseous, dry and clean media.
Dry ranges from 0-25mbar (0-10″WG) to 0-600 mbar (0-250″WG) Glycerine filled from 0-100mbar (0-40″WG) to 0-600 mbar (0-250″WG) The KPCh / KPChG 63-1 version is available in bottom and back connection, with front or back flange mount.
This standard version has the DIN case in 304SS with brass wetted parts. 316 SS wetted parts is available as an option.
Call or email us to ask about the options available for this product.
Features / Benefits
EN837 Class 1.6
High quality product made in UK/EU
DIN type case, bayonet bezel
Available with 316SS wetted parts
Diaphragm capsule for low pressures
Accurate, reliable and well-made
Chemical & Petrochemical
