100mm (4″) SS Process Pressure Gauge Crimped
RChg 100-3 Dry
RChgG 100-3 Filled
RChg(G) 100-3 Fillable
High quality, EN837 Class 1.0, Crimped Bezel, 316SS Wetted Parts. From Vacuum to 600 bar (10,000 PSI)
High quality pressure gauges designed and manufactured to meet the requirements of most industrial pressure measurement applications.
Available in all pressure ranges from 0-1 bar to 0-600 bar (0-15 psi to 0-10,000 psi) including vacuum and compound.

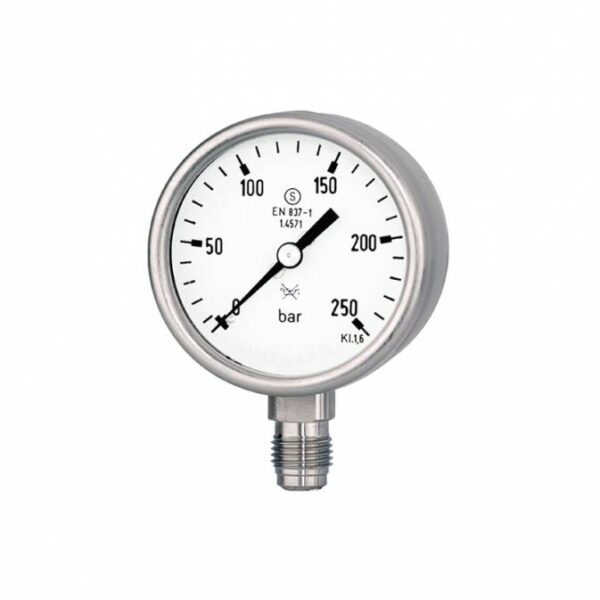

The RChg / RChgG 100-3 version is widely used throughout the world. It is available in several configurations such as bottom connection (pictured), panel mount etc. The standard version has a 304SS case, a crimped bezel and 316SS wetted parts but other materials are available such as brass.
These gauges can be fitted with our extensive range of chemical seals.
Call or email us to ask about the many options available for this product.
Features / Benefits
EN837 Class 1.0
High quality product made in UK/EU
All stainless steel construction
Crimped bezel and polycarbonate window
Can be supplied dry or glycerine filled
Many options and configurations available
Accurate, reliable, well-made and robust
Suitable for most applications
Chemical & Petrochemical
Food, Beverage & Dairy
Oil and Gas
