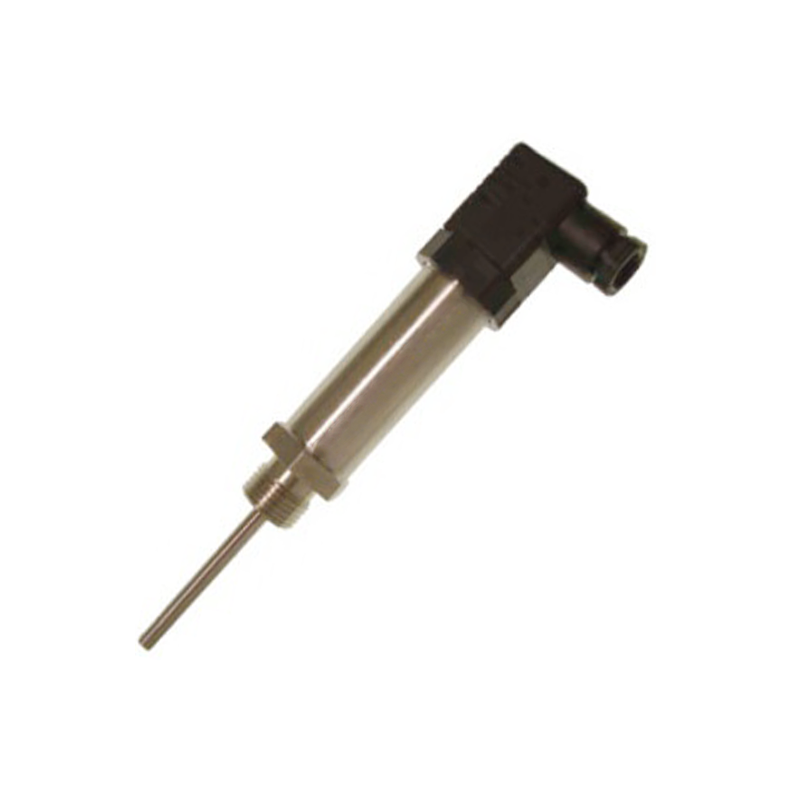

Pt100 RTD Sensor with Integral 4-20mA Transmitter
A Pt100 temperature sensor with integral 4-20 mA transmitter and standard DIN Hirschmann connection.
A Pt100 temperature sensor with essential 4-20 mA transmitter and standard DIN Hirschmann association.
The class A Pt100 component is housed in 6mm distance across inflexible stem 316 stainless steel sheath, accessible in standard lengths of 50, 100 or 150mm long underneath hex of a ½” BSP handle association.
It has a vital 4-20mA transmitter housed in a 316 stainless steel body. The yield is a circle controlled (10 to 30 Volts dc) 4-20mA flag with a default scope of 0 – 100°C and surrounding working temperature scope of 0 to 75°C.
A DIN style Hirschmann connector is utilized for simple establishment and substitution while looking after unwavering quality. The removable connector link attachment is IP65 evaluated and has a focal settling screw finish with PG7 link organ reasonable for 4.5 to 6mm width instrument wires.
Features / Benefits
Pt100 Class A accuracy
Built-in 4-20mA transmitter
Standard DIN connector
316 stainless steel
0 – 100°C standard range
Industrial Process Control
