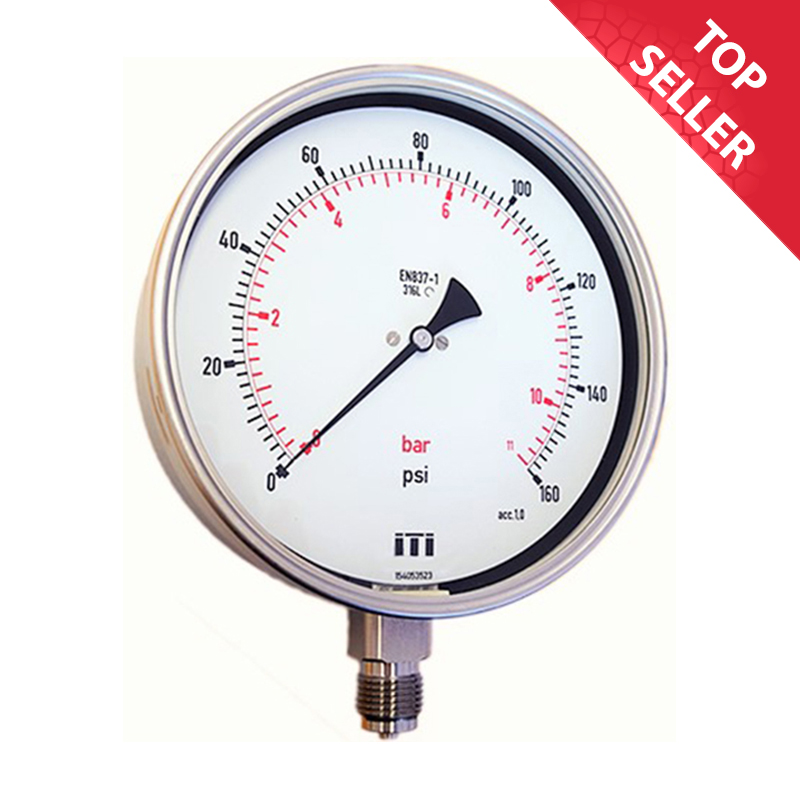

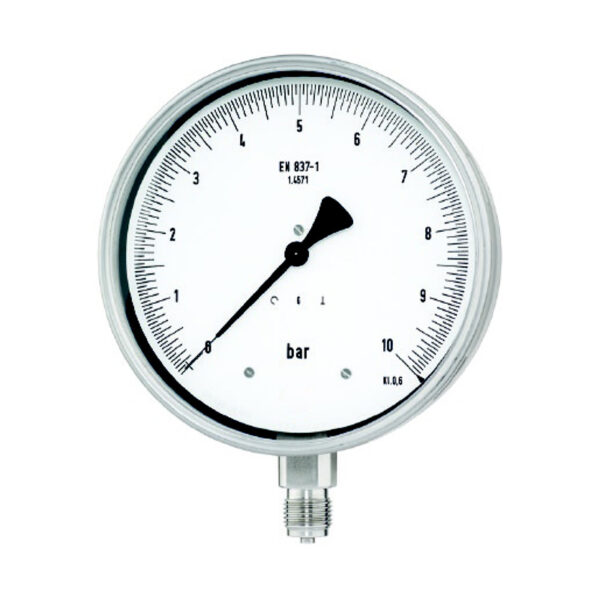

High quality 160mm Process Pressure Gauge, designed and manufactured to meet the requirements of most industrial pressure measurement applications.
The gauge is available in all pressure ranges from 0-0.6 bar to 0-1,600 bar (0-10 psi to 0-20,000 psi), including vacuum and compound.

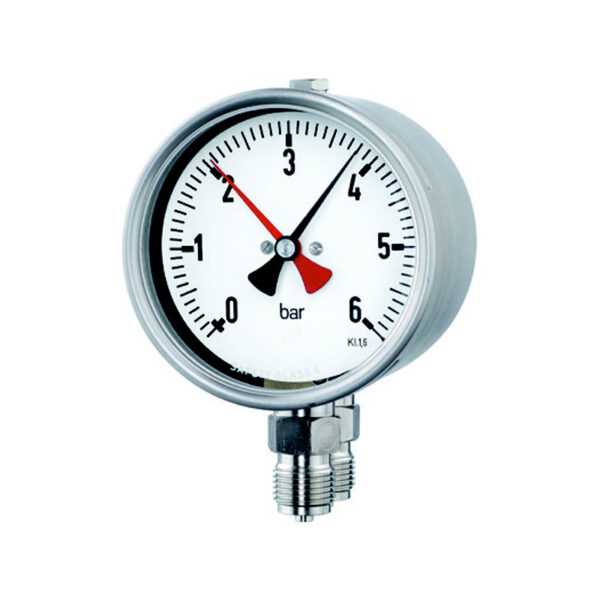

The RCh / RChG 160-3 version is widely used throughout the world. It is available in all configurations such as bottom connection (pictured), panel mount and surface mount. It is also available in all thread sizes such as BSP, BSPT, NPT and Autoclave.
The standard version has the DIN case in 304SS with 316SS wetted parts, but other materials are available such as brass and monel.
These Process Pressure Gauges can be fitted with our extensive range of chemical seals, electrical contacts and the all new e-Gauge.
Call or email us to ask about the many options available for this product.
Features / Benefits
EN837 Class 1.0
High quality product made in UK/EU
All stainless steel construction
DIN type case, bayonet bezel and safety glass
Can be supplied dry or glycerine filled
Many options and configurations available
This is the gauge by which all others should be judged
Accurate, reliable, well-made and robust
Suitable for most applications
Can be fitted with e-Gauge
Purchase online at ITI Direct
Chemical & Petrochemical
Food, Beverage & Dairy
Oil and Gas
